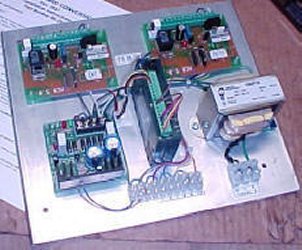

PUPKIT III+

Backwards Compatible. Uses the TCB 6.3. Adds Microswitch Fault Diagnostics. Metal Detector Lockout and All Release functions included.

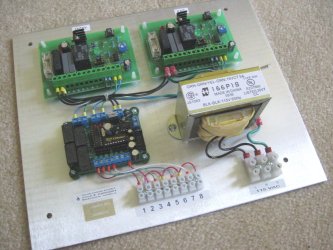

Upgrade Controller for Robot, Philips, Burle & Dearborn Full Height Turnstiles which includes STG, CSTG and ASTG Turnstile Models.

This upgrade kit completely replaces any relays, FP0 type PLCs, and power supply that your present turnstile has installed. A new life for your turnstile. Installation is straight forward and simple. Helps extend the life of your solenoids by providing them the proper operating voltage.

The original PUPKIT is Designed and Manufactured only by XIS Controls

PUPKIT III+

Installation Manual

PUPKIT III+

Using the New TCB 6.4 Red Version boards, The PUPKIT III+ will be released shortly and be supplied with this spicifically configured board. As production costs rise, we are making every attempt to keep these costs down.

PUPKIT III+

Using Red TCB 6.4

Fully backwards compatible with all prior versions: TCB 1, 2, MCB 3, 4, 5, TCB 6x. Increased Sensitivity and Access Granted and Rotation Reset Test Pushbuttons. Configurable One-Shot Pulse Option. Can replace Aegis Mectronics & DSI Control Boards too.

This board is a combination in a single board of the former 30-001, 30-002, & 30-003

Used in turnstile series models: TUT-50, TUT-60, TUT-65, TST-75, THT-100 and in the PUPKIT

Just a few left. Once gone, the TCB 6.4 will be the replacement

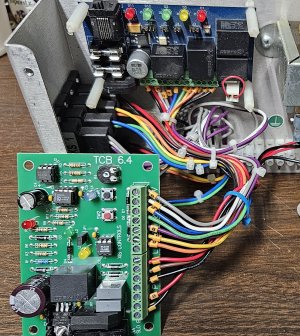

TCB 6.4 Red

Is populated with components for use only in the PUPKIT

Both Green and Red are fully backward compatable for the applications intended.

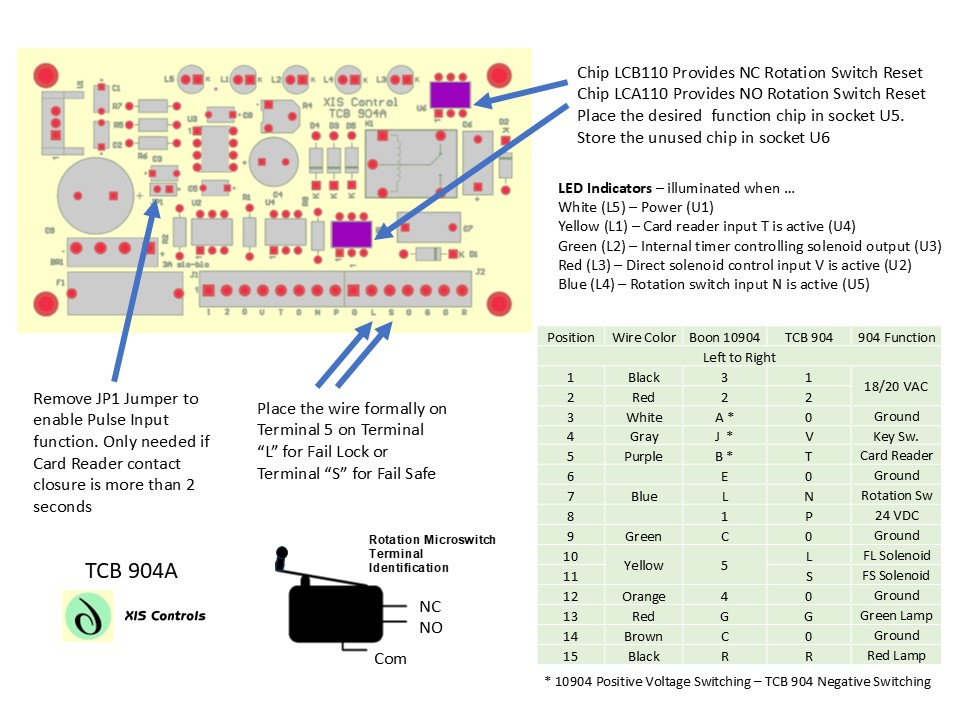

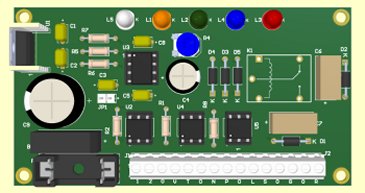

10904 Main Control Board for Boon Edam Turnlock & Trilock Turnstiles

If you have a non-working 10904 board, We are offering $40 each for up to 2 pieces

Alvarado Main Control Board for MST Full Height and EDC Waist High Turnstiles

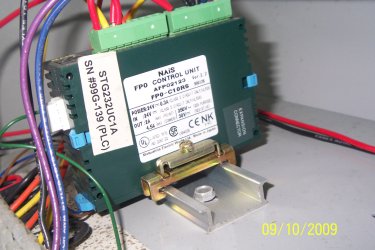

Replacement PLC for PUPKIT I, II, or III.

To determine which you need, please call us with the Pupkit Serial Number.

E10-PUP1

12VDC 4 Output Wireless Remote Radio Control Relay Switch with 2 Remotes

No need to have a desk mounted "buzz to enter" button. Operates 4 turnstiles, gates or doors remotely.

Form "C" relay output -10 amp. Maximum. 100' operating range depending on obstructions. Pushbutton/jumper programmable: Momentary, On/Off, Interlock. Can learn up to 12 remotes. Comes with snap-on cover for the relay board.

Want to control 4 items with your Smart Phone? We recommend mating this WRC-4K with a Sonoff Bridge WiFi and the eWeLink App.

DPDT Control Relay

Found in Robot & Early Burle Turnstiles

Please Note: These relays employ a Magnetic Blowout feature that serves to preserve the life of the contacts. The contact sets have polarity markings that should be observed. For maximum effectiveness, do not alter the factory wiring or substitute similar looking relays.

Wiring Diagrams

Direct Replacement Time Delay Relay with Digital Time Selection

Found in Robot & Early Burle Turnstiles

Replacement Plug-in Relay for Burle & Philips Waist High Turnstiles: Series 100, 200 and RLT2. DPDT Relay also used in HSG Slide Gate Lock Power Supply

Wiring Diagrams

8 Pin DPDT for most circuits

11 Pin 3PDT for circuits that include a numerical counter

Not for MCB 5.0 and after

We will providing the Flange Mount Version below as it is identical in Form, Fit and Function

Flange Mount Control Relay for Alvarado Full & Waist High Turnstiles.

Are you being talked into buying an expensive electronic controller for your relay controlled turnstile. This is not Rocket Science. It doesn't require a computerized board to run. All you need is a replacement relay.

DPDT- 24VDC

Replacement "Solder-in" relay for MCB 5.0 Boards Only - 24VDC

Do not use on TCB 6.x series - They require 12VDC Relays

Replacement "Solder-in" relay for TCB 6.x Series Boards Only - 12VDC

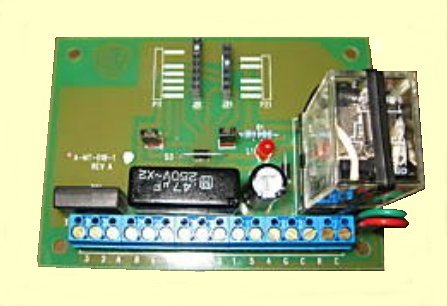

Replacement "Plug-in" relay for 30-002 Pulse Relay Boards

AKA MT-018-2 Version 1

Replacement motor control relay for Philips and Tomsed slide gates

Including models: AHSG, SHSG, CHSG & THG-51SG

General purpose timer relay. Operates on 12 to 24 VDC. A quick jumper setting converts the time from seconds to minutes. The timer can be configured to activate once for each trigger, or free-run as soon as power is applied. Relay can be configured to be normally on or normally off. Also used in our Serial Port Interface TX9-TMR/2

General purpose 12 or 24V DPDT Relay Board

5 Amp Contacts

General purpose relay board. 12 or 24 VDC,

10 amp SPDT contacts

24VDC Replacement solenoid for all Robot, Burle and Philips full height turnstiles. This new style solenoid comes complete with an integral PWM (Pulse Width Modulation) "Pick & Hold" circuit (here shown as the black cylindrical housing). Please observe polarity when connecting to the controller. This part can sometimes be marked 57305-60.

Direct replacement for solenoids marked REGDON or MSA 9060 or Deltrol Solenoids marked 56431-61

Please be advised that connecting this solenoid to older style controllers with voltages above 28VDC may cause premature failure and will void all warranties

Above 85-225 Solenoid as a complete assembly. This version will be available while sub component supplies last, eventually replaced by the version below.

If you are looking for the 86-137, it has been replaced by the 86-141.

Please be advised that connecting this solenoid to older style controllers with voltages above 28VDC may cause premature failure and will void all warranties

86-141 Upgraded and Available

Sometimes when things get older, they tend to be move sluggishly. Trust me on this, I know. At our customer's request we have made an improvement to the 86-141 solenoid assembly by improving the return force exerted by the spring. The spring has been upgraded by increasing the force incrementally and using cup washers to keep the spring centered. The net result is an increase of 4 oz (1/4 pound) when fully seated. All this results in a snappier response. We will also continue to include the pre-load spacer which adds an additional 6 oz.

If you just want the spring retrofit upgrade kit alone see part number 85-213-SK in he springs section.

Back Diode used with Robot, Burle, & Philips Solenoids. Helps to reduce back EMF created when inductive loads are switched. Back EMF is responsible for contact arcing and pitting.

Package of 2.

Solenoid Linkage for above Solenoid Assembly - Replaces the prior fragile nylon version. Non-ferrous aluminum construction does not interfere with the solenoid's magnetic field.

For the Plunger Return Spring 85-213, go to the Spring Section

Perey Full Height Roto-Gate Turnstiles employed a 110VAC Namco series solenoid. These solenoids are no longer manufactured and the only solution, other than replace your turnstile, is to retrofit yours with another configuration, power/stroke equivalent solenoid. Roto-Gate customers have successfully performed this retrofit of their existing RG-560 Solenoid.

Very early Robot Turnstiles used a CR9500 Series Solenoid. Most of these were rated at 115VAC. We will be offering these as we are able to obtain them.

230 VAC CR9500 solenoid used in Robot and Burle Vehicle Slide Gates.

Your solenoid can also be repaired with a replacement coil. See below.

115VAC replacement coil for the CR9500 (B frame size) solenoid above. It is likely that only your coil has failed and that the rest of the solenoid is fine. These solenoids were designed to be modular and as a result, the coil may be replaced while retaining the remainder of the solenoid body.

Coil Replacement Instructions

230 VAC replacement coil for the CR9500 (A frame size) solenoid used in Robot and Burle Vehicle Slide Gates.

Same as Above

BH-46-001

Coil Only

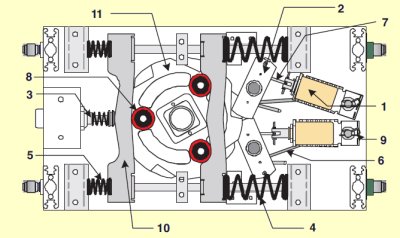

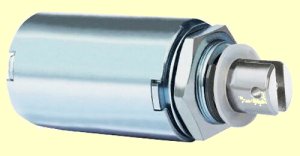

Replacement Solenoids for all Tomsed and some Boon Edam 24VDC Full Height Turnstiles.

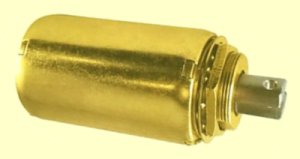

The 101-008 Solenoid is also used on Hayward Waist High and Full height Turnstiles.

Part 101-008 will replace LEDEX/SAIA-BURGESS 192917-00x, and PONTIAC J1203A Solenoids which are installed with the above pictured 2 Bracket system. "L" shaped Solenoid bracket and separate"L" shaped Stroke Limit Bracket. If your stroke limit bracket is missing, we have them.

If your turnstile has the single "U" shaped solenoid bracket installed, the 101-008 will not work. See part 10986 below.

101-008

Replaces Ledex & Pontiac Solenoids

For 2 Bracket system only shown left

Stroke Limit Bracket for Fail-Safe solenoid configurations with Tab for all Tomsed/Boon Edam Full Height Turnstiles regardless of solenoid used.

Stroke Limit Bracket for Fail-Lock solenoid configurations without Tab for all Tomsed/Boon Edam Full Height Turnstiles regardless of solenoid used.

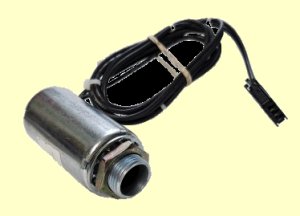

BOON EDAM 10986 Solenoid Replacement AKA Pontiac J1203A

Heavy Duty Aluminum Solenoid Bracket for 10986 replacement Deltrol or Guardian solenoid with 1" diameter bushing. Comes with #10218 & 10247 long and short edge protector kit.

Aluminum is a better heat conductor than the original steel bracket.

We have a few #10244 "removed from service" brackets of the 7/8" diameter steel brackets @ $19.00

Mando Gear - Wear one of these and no one will jump the turnstile

Simply stated, "this is the way" ...... din djarin

Grogru approved. Dissipates direct blaster hits. Be the first on your block.

Made of pure Beskar. The Armoire is on vacation. There is a wait list.

24 VDC Continuous Duty Solenoid for older ALVARADO Full Height and Waist High Turnstiles. New versions of these use 12 VDC Solenoids. 50-10-1000 and 50-10-1070 are kits with 2 solenoids and mounting hardware. We sell the solenoids individually or in kits below.

Your solenoid might be marked SDO-1251L. These were a substitution manufactured by Zanty in China and do not have the durability of the Deltrol and Guardian Solenoids we supply. In fact, Deltrol was the brand used by Alvarado prior to their shift to Zanty. Zanty 24VDC version is marked SDO-1251L-24A47.2 and the 12VDC version is marked SDO-1251L-12A11.8

PLEASE NOTE: If you have a Zanty Solenoid marked SDO-125L-12A7.5, Alvarado informs us that the Standard 10-1070 Solenoids should perform without problems.

This solenoid is also found in some Perey waist high turnstiles as well as Ingress Control Model HGO-200 Full Height Turnstile (24VDC)

All manufacturers models are interchangeable.

Compare Guardian & Deltrol ........... Zanty Specs.

Alvarado Solenoid Kit, Full & Waist High ::: 2 Solenoids + 8 Socket Head Cap Screws + 8 Internal Star Washers

We've got a Limited Number of ZANTY 50-10-1000 24VDC & 50-10-1070 12VDC Kits Available - Specify when ordering

24 VDC Continuous Duty Solenoid for CONTROLLED ACCESS 8100 Series Turnstile Mechanisms.

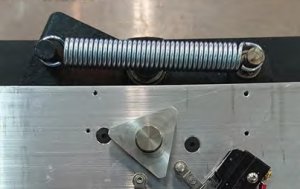

Upgrade Spring Kit for Burle and Philips Full Height Turnstile Solenoids

Solenoid Plunger Return Spring Kit for Solenoid Assembly 86-141

Upgrade kit includes spring with incrementally improved force, Spring centering cup washers, SS cotter pin and pre-load spacer for adding additional force if needed.

This new spring and cup washers add 4 oz force and the pre-load spacer adds an additional 6 oz force.

Solenoid Connecting Spring for Tomsed Models TUT-60, TUT65 & TST-75. Required for Fail-safe configuration. Not for TUT-50 Model.

Solenoid Connecting Spring for Tomsed Model TUT-50. Required for Fail-safe configuration.

Solenoid Connecting Spring for Tomsed Models THT-100. Required for Fail-safe configuration.

Locking Pawl Spring for Burle & Philips RLT, TG, and series 100 & 200 Waist High Turnstiles

Solenoid Connecting Spring for Burle & Philips RLT, TG, and series 100 & 200 Waist High Turnstiles.

Boon Edam Turnlock universal locking pawl spring. For Turnlock 100, 150 & 200. Not for earlier Tomsed THT-100 design mechanisms.

For Tomsed/Boon Edam TUT-60, TUT65, & TST-75 Waist High Turnstiles.

80-008 RH - Right Hand Fail-safe Locking Pawl Spring

80-009 LH & FL - Left Hand Fail-safe& Fail Lock Locking Pawl Spring. This spring is used for both Right & Left Locking Pawls if the configuration is Fail-Lock.

For Tomsed/Boon Edam TUT-50 Waist High Turnstile

50-013 Fail-safe Locking Pawl Spring

50-019 Fail-Lock Locking Pawl Spring

For Tomsed/Boon Edam TUT-50, TUT-60, TUT65, & TST-75 Waist High Turnstiles.

Back Pawl Spring

For Tomsed/Boon Edam TUT-60, TUT65, & TST-75 Waist High Turnstiles.

Main Spring

For Tomsed/Boon Edam TUT-50 Waist High Turnstile

Main Spring

Pivot Arm Spring For Robot, Burle & Philips Full Height Turnstiles. The spring is the same for any of the 4 possible locking assemblies.

This spring is also used in Burle & Philips Waist High RLT, 100 & 200 series turnstiles in conjunction with the speed control shock absorber.

Our Success Secret

The expression "To shoot yourself in the foot" is considered an act of self-sabotage, often used humorously but mostly unknowingly. I am happy (not delusional) to report that XIS Controls has successfully and knowingly furthered this objective. We offer free troubleshooting, maintenance advice and reliable products. Often, its not only a repair but a solution to an ongoing problem. We do not and will not knowingly steer you wrong. We want it fixed so you'll never come back to us with that problem. This has done nothing to hurt our business. On the contrary, our customer consider us as a reliable and vital resource to the point that our business has grown by referral by these satisfied customers. This is because we are Engineers and Innovators with over 40 years in this business. We not only sell the stuff, we know how it works.

Shock Absorber Assist Spring for Tomsed & Boon Edam Full Height Turnstiles with Large Triangle Speed Control Mechanism

Tomsed/Boon Edam THT-100 Full Height Turnstile Key Bypass Connecting Springs.

We also carry the Brass Bushing Set for the 11-5265 Centering Springs.

Get the entire MST-SC Spring & Bushing Kit with 2 Springs and 4 Bushings

Spring Shaft Locking Collar for the Centering Spring Assembly. The entire assembly uses 4 collars, one at each end of the 2 shafts. The above photo shows only one end of the shafts.

Alvarado Extension Springs For Full Height Turnstiles

Alvarado 50-MST-S1 is a kit of 8 Springs and a Spring Anchor Screw

50-MST-S1

Eight Springs & Anchor Screw

Have you been purchasing the 50-MST-S1 Spring Kit of 8 springs when you only need one or two springs. We sell them individually so you don't pay for what you don't need.

These springs are found on the MST, FMST, CPST and CLST series of Turnstiles.

Alvarado Full Height Turnstile Brake Spring Anchor Screw

Yum-Mee Delicious "Spring" Rolls.

These are Consumption Springs and should not be confused with Compression Springs. Keep these well Lubricated in your Favorite Duck or Hot Sauce. We have Franchised a Local Take-out Joint in your Area.

Perey Rotary Speed Control Damper Spring for all waist high models that use a Torsion Spring including Model 48 and replaces part 47-101 for Model 47

Model 48 Damper Spring

Main Compression Spring for Perey Waist High Tripod Turnstiles including Models: 48, 55, 136, 140 & 150. Although Perey called this a Compression Spring it is actually a Torsion Spring by industry definition.

Model 48 No Holes in Hub

Main Compression Spring for Perey Waist High Tripod Turnstiles including Models: 47 and other older models with holes in the hub.

Model 47 With Holes in Hub

Perey Roto-gate

Full Height Turnstile

Perey may be out of business but you can still get springs, solenoids, microswitches and bearings from us.

Perey Roto-Gate Full Height Turnstile.

Pawl Rod Spring

Perey Roto-Gate Full Height Turnstile.

Actuator Spring

Perey Roto-Gate Full Height Turnstile.

Latch Spring Left Hand

Perey Roto-Gate Full Height Turnstile.

Latch Spring Right Hand

Perey Roto-Gate Full Height Turnstile.

Locking Pawl Spring. Left and Right Pawl Springs are the same except flipped over.

Stationary Roller Actuator found on Late Burle and Philips Turnstiles

Screw Terminals

Can replace part # 81-152, and 72-105 below

Folding Roller Actuator Microswitch on Late Robot and Early Burle Turnstiles

Folding Roller Actuator Microswitch used in Hayward Full Height Turnstiles

Screw Terminals

Exotic Double Actuator Microswitch. Almost impossible to find, Microswitch for Perey Waist High Electric Model 47. Once these are gone they're gone. Limited supply.

Simulated Roller Lever:

Locking Bar Switch for Philips STG Series Full Height Turnstiles (Light Control)

Replaces 53-859, 53-872, 61-534, 61-535.

Limit Switch for RLT Series Waist High Turnstiles

A word about microswitch types:

A "One-Way" microswitch operates in one direction. It has a lever which collapses in one direction and stays rigid in the other.

A "Two-Way" microswitch remains rigid in both directions. This is how the industry defines it. The factory has always gotten this wrong.

< -----True "Microswitches". You can't buy them because we can't find them.

Rotation Detection Microswitch.

Types A & B are fully interchangeable.

Can be used in either clockwise and counter clockwise positions.

For all Tomsed & Boon Edam Waist High Turnstile Models

For both Full Height and Waist High Alvarado Turnstiles as well.

Type A is a 2 part assembly of microswitch body with the add-on one-way roller accessory. Please note that Type A is is subject to more frequent failure due to the flexing and metal fatigue of the actuator arm.

Type B is a one piece switch with integral roller actuator. The actuator arm for Type B rocks rather than flexes and as such has a longer service life.

Individual parts For Type A may be purchased below

Type A Rotation Reset Microswitch. These can be used as the Rotation Reset Switch when you have an attached roller activator accessory. For Tomsed and Boon Edam Turnstiles, the roller accessory is JV-30 One-way Roller with Short Lever.

Alvarado EDC, SLT & MSTX Turnstiles - Switch body is Alvarado Part Number 10-1400. Switch lever is Alvarado Part Number 10-1450

Part Number 50-10-1450 describes a package of 10 pieces of the switch lever. We sell them individually.

Alvarado Microswitch Replacement Kit :::: 2 Microswitch Bodies + 2 Activation Levers + 4 each Screws, Star Washers & Nuts

Alvarado Full Height Turnstile Optical Sensor Kit

For models: MSTX, MSTX-T, MSTX-47, CLSTX, CLSTX-T, CPSTX, CPSTX-T that use optical sensors and not microswitches.

Microswitch Assembly (ASBY) Kit

Create a 46-006ASBY when added to the 46-006 Microswitch or a 101-012ASBY when added to a 101-012 Microswitch as shown below.

Kit consists of: (1) 30-006 Microswitch Mounting Plate, (1) 101-015 Insulator, (2) HSS4-40X.56A Screws, (2) HWZ4D internal lock washers.

Boon Edam Turnlock Microswitch Spacer Block.

Comes with 2 each metric M2.5 switch mounting screws and star washers.

Can be used for Left or Right hand positions

Tomsed/Boon Edam Microswitch Electric Activator Disk

Models: TUT-50 ... Part # 50-028

Models: TUT-60, TUT-65, & TST-75 ... Part # 80-033

Tomsed/Boon Edam Microswitch Electric Activator Disk

100-028, Non Speed Control models 2.5" Diameter

100-029, Tomsed Speed Control models 3" Diameter and Boon Edam Turnlock. Please note that Boon Edam Activator Disc 10057 is identical to the Tomsed 100-029 except that it has a metric mounting screw. They are interchangeable.

100-030, 4 section & Mantrap models 3" diameter with 4 lobe lifts

Tomsed & Boon Edam Full Height Turnstile rotation detection switch

One-way Roller Long Lever Microswitch used in most Model THT-100 and Boon Edam Turnlock Turnstiles

Can be used in either clockwise and counter clockwise positions.

If you have an electrically controlled one-way turnstile, you can use this or the 101-013 microswitch instead.

Above Microswitch with Mounting Plate and Insulator

Both Left Hand (101-012ASBYLH) and Right Hand (101-012ASBYRH) can be configured by simply remounting the microswitch and insulator on the reverse side of the mounting plate

Two-way Roller Long Lever Microswitch used in most Tomsed & Boon Edam Full Height Turnstiles as the solenoid activation switch. Can be found in various other models as a special application microswitch. These include the TST-75DA (Drop Arm), the THT-100MT (Man Trap) and one-way only full height models..

Often incorrectly listed as 101-013E. This is the part number for the switch mounting bracket when used as a solenoid activation switch.

Part# 83106 Folding Roller Microswitch for Automatic Systems Turnstiles.

Microswitch Actuator for Burle & Philips Swing Gate HSWG. Must be replaced by the entire switch assembly below.

Perey short roller microswitch found in many newer models. The factory supplied Cherry D45LR1RA is discontinued. Our replacement microswitch is identical to the factory original except it is black rather than white.

Short Roller Microswitch for Hayward Waist High Turnstiles

Replacement for 61-356 Actuator and 61-534 Switch Body as a Complete Assembly

Controlled Access Microswitch used in almost all turnstile models that use the series CA-6100, CA-6500 and CA-8100 control mechanisms.

Also for many Perey Full Height Roto-gate Turnstiles

Optical Sensors for Tomsed TOT-20ES and EP Optical Turnstiles

Retroflective type includes single retroflective unit.

These have been removed from working units and fully tested.

Five digit Mechanical Counters for Tomsed & Boon Edam Waist High Turnstiles. Both Reddington and Durant brand counters were used and are fully interchangeable. There are 4 possible styles: Right or Left side shaft and Resettable and Non-Resetable styles.

Shown at left: Non-Resettable with right hand shaft. These are in limited supply so call us to check stock.

CCW Lever Spring

7 Digit Electric Counter - Non Resettable - 24 VAC

Perfect for concealed mounting. Maxmar - Saia-Burgess Model CBG075B4K0N0N00. All you need to add is an AC transformer.

Old Stock - Never Used - 4 Pieces Remaining

Tech Sheet

Occupancy Capacity Controller

Do you have a gallery, exhibition, venue, store, parking garage that requires you to limit capacity? The capacity controller has the ability to count entries and perform an action (lock turnstile/illuminate a sign) when a settable limit is reached. When the count from an exit device (turnstile/photo beam) decrements the counter, the entry device (turnstile/sign) will allow entries again. Let us configure a solution for you.

Infitec Coin Totalizer Vending Timer
ASCR44 - 24VAC - 20amp.
1-15 coins - 1-1023sec.

Perfect companion to a coin comparitor

Tech Sheet

Hi-yo Silver Away

Silver Bullets

Jay Silverheels

A fiery horse with the speed of light, a cloud of dust and a hearty Hi-Yo Silver!

Silver Bullet - Something that acts as a magical weapon. Especially one that instantly solves a long-standing problem. Let us be your Kimosabe (friend) and solve your troubling turnstile issue. 919-412-9200 and .. just who was that masked man?

Even clouds have silver linings. Chemical Symbol AG ... hey those are my initials!

11/16" Clearance Hole - Comes with mounting hardware

101-005-ALT

Red

Last Chance

Last remaining stock of LED replacement bulbs for the factory original 53-852 lamp assemblies found on the Philips and Burle Full Height Turnstiles.

These bulbs are out of production. See below for an alternative choice

60 - 500 VAC Voltage Meter. LED Readout. 22mm Mounting Hole.

Audible Alarm and Flashing Red LED's in 22mm package. Operates on 24V AC or DC

Replacement DPST Mains Power Switch for Tomsed & Boon Edam Waist High Turnstiles.

Single Gang Handi-box cover plate with rectangular punch-out for this switch also available.

Vandal Resistant Momentary Pushbutton - Normally Open - Stainless Steel - Perfect for unattended locations and for use as an exit request or intercom call button. 19mm mounting hole.

Replacement switch body for Palm Button Exit Switches

#757 Mini Incandescent Indicator Lamp for above status lights.
28 Volt - 0.08 Amp - T3.25 Bulb - Miniature Bayonet.

HL300 Cam Lock Kits

Tomsed/Boon Edam Cam Locks for many of their Turnstiles. Please measure the length as shown in the photo on the left. We have in stock 5/8", 7/8", 1-1/8" lengths.

We also have several Cam Locks that are keyed differently than the HL300. Please call for availability. All are 3/4" diameter mounting hole.

Lots of different cam arms were used so save the cam arm from your existing lock to insure interchangeability.

Lost your Key to get into your Tomsed/Boon Edam Turnstile cabinet. Don't drill out the lock. We got them.

Fits Illinois HL300 Cam Lock part # 100-447

Alvarado Replacement Key: For MST, EDC & SLT Override Locks and EDC Lid Lock

Flat Double Cut ABA Lock Key Code A121

Original Power Transformer for Un-upgraded Robot, Burle and Philips Full Height Turnstiles. Not to be used with 86-292 or PUPKIT Upgrade Kits.

110/220 Primary - 14VAC & 24VAC Secondaries. May be marked Wabash or ATC Frost.

Earlier transformers had a single 24VAC secondary and may be marked Heyboer HT-5037

These are old stock, never used, fully tested and inspected to verify that they meet the original factory specifications.

One piece in stock.

24 VAC transformer for Alvarado Full Height MST Series turnstiles produced before 2003.

Later MST turnstiles used part 10-3008A 10VAC transformer

110/220VAC - 20VAC Tomsed & Boon Edam Transformers for Waist High Turnstiles (aka 8508).

101-010

Full Height

This is the 110/220VAC - 20VAC Transformer for Tomsed & Boon Edam Full Height Turnstiles. If your THT-100 was delivered with the 101-010 18VAC transformer, you should continue using that transformer and not this one even if 100-009 appears on the recommended spare parts list.

Also used inside the Boon Edam Turnlock Control Box

Were you expecting a good pun?

18VAC - 5amp Transformer

Used in 86-292 & PUPKIT Upgrade Kits

Used in USA manufactured version of Boon Edam's Waist High TST-75 Tripod Turnstiles with Drop-Arm Feature

General purpose signal transformer. 110 VAC Primary, 24 Volts AC Secondary @ 40 VA (about 1.5 amps).

Hi I'm Elfo. Not sure how I wound up here, but I'm glad you did.

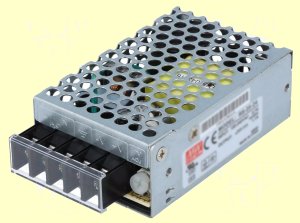

Voltage Regulator Module

Used in 86-292 Upgrade Kit only

Ferrite Cores behave like a Low-Pass Filter. Wind your power wires through the ferrite core and reduce high frequency noise that is induced by nearby machinery.

15/32" OD, 17/64" ID, 19/32" Long

TCB 6.0 Replacement Fuses. (will also be suitable for Tomsed/Boon Edam boards) -------- 5 X 20 MM - 2 Amp - SloBlo

TCB 6.1 Replacement Fuses. --------- 5 X 20 MM - 3 Amp - SloBlo

There were 2 different manufacturers that supplied these shocks. Ace and Enidine. The Ace is black in color and the Enidine is silver. They are interchangeable.

45-018ASBY is complete and pre-assembled. It includes: 45-018E Shock Absorber, 45-022 Shock Absorber Yoke, HPO.12X.25A Roll Pin, 45-022P Yoke Pin and two 45-020 Shock Mounting Nuts. Removed from service. Fully tested.

Shock Absorber Only Replacement. Comes with two 45-020 shock mounting nuts. Comes without yoke, yoke pin, roll pin.

This Shock Absorber is also used in the Burle & Philips RLT Waist High Turnstiles and some Full Height Turnstiles with a 1" diameter shock.

Shock Absorber for Robot, Burle & Philips Full Height Turnstiles. Does your turnstile slam to a stop or bounce back? It's time to replace your shock absorber. This shock absorber was designed with a specific hydraulic fluid for this application and cannot be replaced by an off-the-shelf look alike.

Also used in Burle & Philips series 100 & 200 Waist High Turnstiles

Long term shelf storage ages the packing elastomers and results in leakage of hydraulic fluid. Accept no shock absorber that has been sitting around. We have fresh stock by the original manufacturer.

The 85-156 Shock Absorber has a 3/4" diameter. If your turnstile uses a Shock absorber with a 1" diameter, please order the 85-632 above.

Bitcoin not accepted

Another monster

Alvarado Full Height Turnstile Speed Control Governor Kit. Excludes MST-47 Model. Comes with brackets, screws and shaft key.

The instructions indicate that you can discard the shaft key. Don't do this until you are absolutely sure you don't need it.

When recently servicing an Alvarado MST Speed Control Governor, we followed the enclosed instructions and discarded the Shaft Key. Unfortunately, the shaft key does not normally come with the 50-04-1696 replacement governor kit. So we made some for us and for you.

We apologize for the high price on this simple item but small quantity production is never economical.

The MST SELF-CENTERING ASSEMBLY Kit contains the parts required to support the self-centering of a standard Roto assembly. This kit can be used on MST, MST-T, CLST, CLT-T, CPST, and CPST-T turnstiles.

For MST-47, Please call us.

Teflon Thrust Disc for Tomsed THT-100 All Mechanical/Non Electric Full Height Turnstiles

Non-Electric, Mechanical only Tomsed THT-100 Full Height Turnstiles does not employ the Thrust Bearing 100-040 above. Rather they use a Nylon/Teflon Thrust Disc as the bearing surface. Do not attempt to use this disc as a lower cost alternative for electric turnstiles as you will damage the floor plate and lower flange.

Synthetic Waterproof High Temperature Green Grease, 3 Oz. Tube - Perfect for both indoor and outdoor installations. Use with our companion Grease Gun.

Apply liberally to all bearings.

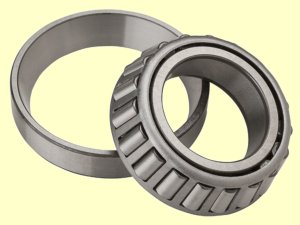

Replacement Bottom Bearing for Alvarado Full Height Turnstiles. 3/4" ID. Pictured left is the entire Bottom Bearing Assembly (50-MST-BB). Part 11-4000 is the bearing only, shown as the part in the middle.

Clutch Assembly Insert for Alvarado Mechanical One-way Full Height Turnstiles

For Models MST-G and MST-1. Six spline clutch insert replaces both 3 and 6 spline versions.

Lock/Free Turn directions are determined by which end is up.

XIS Controls Exclusive

Our Engineers have been hard at work creating the most desirable fidget spinner you have ever seen. Hours of aggravation and frustration await you as while away your time trying to get this to spin. Please do not mistake our JimJick for any off the shelf thing-a-ma-bob.

Hand made in the good old USA

Bearing for all Tomsed/Boon Edam Waist High Turnstiles sometimes referred to as their Trilock Turnstiles. 1" ID. Also used in the Top Plate of Tomsed THT-100 with speed control and Boon Edam Turnlock Full Height Turnstiles

Top Bearing for Tomsed/Boon Edam Full Height THT-100 Turnstiles without Speed Control. 1.25" ID

Top Bearing for Tomsed/Boon Edam Full Height THT-100 Turnstiles with Speed Control. 1.5" ID

3 Hole Bearing Flange for all Tomsed Waist High Turnstiles. Goes with Bearing 45-019. Set of 2. Also used in the Top Plate of Tomsed THT-100 with speed control and Boon Edam Turnlock Full Height Turnstiles.

3 Hole Bearing Flange for Tomsed Full Height Turnstiles. Non-Speed Control. Goes with Bearing 100-041. Set of 2

4 Hole Bearing Flange for Tomsed Full Height Turnstiles. With Speed Control. Goes with Bearing 100-042. Set of 2

Top plate bearing for Tomsed THT-100 full height turnstiles with speed control and the Boon Edam Turnlock turnstiles.

It consists of The 45-019 Bearing and the 45-019F Flanges shown above. This gives you the opportunity to purchase them individually or as a set.

80-022: Replacement Urethane 1/2 Circle Self-Centering Disc for TUT-60, TUT-65 and TST-75 Tomsed and Boon Edam Waist High Turnstiles.

50-018: Replacement Nylon 1/2 Circle Self-Centering Disc for TUT-50 Tomsed and Boon Edam Waist High Turnstiles.

Replacement Nylon Self-Centering Cam for Tomsed and Boon Edam THT-100 3 Rotor Full Height Turnstiles.

This part is also known as Cubic THT-100H-7. Used in NYC Transit H.E.E.T. Turnstiles

Replacement Roller Arm Ball Bearing. Our bearings have stainless steel side shields rather than rubber side shields you may have used in the past. Net result: less contamination and longer life.

Got a complicated issue with your turnstile? Probably not

Lets get it fixed together. You do not have to think it needs to be replaced. Maybe there's a reason it breaks down. Often fixing the symptom doesn't address the cure. You have a capital investment in your equipment, so you should make the most of it. Shinny is nice, practical is better.

Call us 919-412-9200

Lower(85-143) Bearing and Flange Assembly for Robot, Burle and Philips Full Height Turnstiles.

This is also the Top Bearing (RG-505) found in most Perey Full Height Roto-Gates

This assembly includes the pre-assembled 4-hole mounting flange and 1" ID Bearing. This assembly comes with the integral grease fitting as shown.

All Stainless Steel Bearing and Flange Assembly. May be used in either Top or Bottom positions. 1" ID.

This bearing is not recommend as bottom bearing for use outdoors. Stainless Steel becomes brittle in the presence of chlorides (Ice Melting Salt)

BEST PERFORMANCE

Thermoplastic Flange with Stainless Steel Bearing (TPSS). These are not the Black Oxide bearings often substituted by other parts suppliers. This is for use as an Upper Bearing only.

Alvarado Top Bearing (11-4010) for MST & MSTX full height turnstiles.

This assembly includes the pre-assembled 4-hole mounting flange and 1-1/4" ID Bearing. This assembly comes with the integral grease fitting as shown.

Large diameter Lower floor bearing (81-117) with 4 hole flange for very early Robot Full Height Turnstiles used in mechanisms similar to that pictured here.

Upper Flange bearing (81-127) with 4 hole flange (There are 2) with Eccentric Locking Collar. Special order.

Set of 3 Bushings. Bushings are used on ASTG, ASTG2, CATG & CSTG Models only. Not Used on STG & STG2 Models.

Place bushings over 3 of the three upright pins.

Self-Centering Rollers 3x(85-141) are mounted to the ratchet using hex socket shoulder bolts. 85-141 are sold in sets of 3 and should be replaced as such.

See Hardware Section for Mounting Bolts

Cam Clutch for Early One-way Robot Full Height Turnstiles

Bottom Bearing for Controlled Access Turnstiles. Bearings are subject to water, salt and dirt environments. The original bearing was unsealed with only one side shield. The replacement we provide is pre-lubricated and sealed on both sides. With integral removable snap-ring, this superior bearing is form, fit and function heads above the original.

Top Bearing for Controlled Access Turnstiles. In outdoor installations, bearings need to be protected against the elements from driving rain and salt spray. Our double shielded pre-lubricated bearings are well suited for this service. Our bearings come with a removable snap ring.

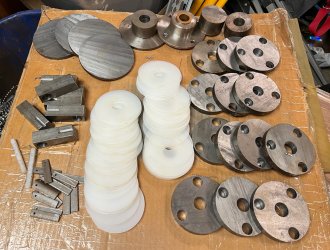

We have acquired a number of different Pawls, Linkages & Studs. We are in the process of sorting and inventorying them.

These are for the full range of Tomsed & Boon Edam Waist High Turnstiles.

While we might not have every part number, please call to check for availability.

More Than Shown Below

Call

Locking Pawls for Tomsed Waist High Turnstiles Models TUT-60, TUT-65 and TST-75.

80-010 Left Hand Fail Safe

80-011 Right Hand Fail Safe

80-012 Left Hand Fail Lock (can be used in place of 80-010)

80-013 Right Hand Fail Lock (can be used in place of 80-011)

Locking Pawl Linkages for Tomsed Waist High Turnstiles Models TUT-60, TUT-65 and TST-75.

80-035 Fail Lock

80-018 Fail Safe

Boon Edam has discontinued the manufacture of the entire TUT-50 series of turnstiles. That means that their parts support will go away even if you purchased one recently. XIS Controls is committed to supporting your replacement part needs.

Locking Pawls for Tomsed Waist High Turnstiles Model TUT-50

50-015 Fail Lock

50-016 Fail Safe

Back Pawls for Tomsed Waist High Turnstiles

50-007 For Model TUT-50

80-043 For Models TUT-60, TUT-65, TST-75. (can be used in place of 50-007)

Locking Pawl Linkages for Tomsed Full Height Turnstile Model THT-100. Approximate Horizontal x Vertical as shown.

A 2-3/16" - Sold out

B 1-15/16" x 3/4" Part# 100-433

C 1-7/8" x 1-1/4" Part# 100-437

D 2-7/16" x 2-11/16" - Sold out

Tomsed/Boon Edam THT-100 Full Height Turnstile Fail-Safe Locking Pawl. These have 1/4-20 threads. Do not confuse these with the Boon Edam Turnlock Series which have Metric threads.

Match this up with a B or C linkage above and a 100-131 connecting spring to make a Fail-safe locking pawl assembly.

Tomsed/Boon Edam THT-100 Full Height Turnstile Combo Locking Pawl FL/FS. These have 1/4-20 threads. Do not confuse these with the Boon Edam Turnlock Series which have Metric threads.

Configurable Solenoid Connecting Linkage for Boon Edam Turnlock Turnstiles.

Can be used for both fail-lock and fail-safe configurations.

Tomsed/Boon Edam TUT-60, TUT-65 & TST-75 Waist High Models.

Mechanism Studs & Posts.

More Studs and Posts for other models available - Call

Alvarado Full Height Turnstiles Lock Arms (aka locking pawls). These are for all Alvarado Full Height Turnstiles 2003 and newer.

50-MST-LA consists of one each Left & Right Lock Arms, two Hex Socket Shoulder Bolts and four Oilite Thrust Washers.

These Lock Arm components are different from pre 2003 models. A quick way to determine is to measure the Shoulder Bolts. Post 2003 Locking Arms used a 5/8" diameter X 1-1/2" long shoulder, Shoulder Bolt. (11-1617)

If you are looking for Part Number 50-MST-BK. That consists of 2 shoulder bolts and 4 thrust washers.

Pre 2003 Locking Arms have been discontinued. XIS Controls continues to supply a replacement kit by adapting the "LA" arms for use in the older model MST turnstiles and has assigned the suffix "LP"

The Kit consists of: One Left Lock Arm, part number 04-2040-Alt. One Right Lock Arm, part number 04-2050-Alt. and Two 11-1661 Shoulder Bolts.

This older style does not use thrust washers

Hex Socket HSO.5X1 Lock Arm Shoulder Bolts for Alvarado MST & MSTX Full Height Turnstiles manufactured 2003 and earlier.

Pre 2003 Locking Arms used a 1/2" diameter X 1" long shoulder, Shoulder Bolt.

Shoulder Bolt

11-1661

Here's the silliest thing we've seen yet. For years this custom fabricated "L" shaped drop-in pin has been selling elsewhere for over $10.00. For years we have been using a Hardened Steel Cotter Pin to do the job with zero problems. We've been telling this to our customers so that they can save a few bucks. Here are the specs:

Air Quenched (A2) hardened Stainless Steel, 1/8" diameter, 1.75" long. If you still want to buy them from us, we got em'

HSO.5-16X2.25N Hex Socket Shoulder Bolt for Full Height Turnstiles. All THT-100 Models. Used in conjunction with 30-004 Bearings.

NHN 5/8-11 Nylon Insert Plunger Bar Lock Nut for Robot, Burle & Philips Full Height Turnstiles.

Hex Head Shoulder Bolt with Nylon Insert Lock Washer for mounting the 85-308 to the Plunger Bar Roller.

Stainless Steel Hex Head Shoulder Bolts used as Guide Bolts between the Tension Block Assembly and the Speed Control Assembly. Set of 2 Bolts. Comes with 2 Stainless Steel Washers.

BS 3/8X2-3/4 Homing Cam Plunger. Burle & Philips Waist High Turnstiles

Robot, Burle, Philips Full Height Turnstile - Lower Bearing Assembly Complete

Upper Hub & Shaft Assembly, Woodruff Shaft Key & Socket Cap Screw are sold as a complete set. Order 85-152 ASBY

$294.00

86-105

86-113

86-116

86-117

86-121

86-122

USED TURNSTILES

Tomsed Model TUT-65RTB was designed for use in Stadiums and Arenas so they are built for tough usage. These have an integral ticket box, Hip Knob/Hand Control which activates the blocking mechanism, rear mounted wheels for portability and optional mechanical counter to register passages.

Internally, the mechanism is similar to the TUT-60 security turnstile and as such, share many of the same parts and robust construction. These units sold originally for around $3,500 - $4,000 each. Completely recertified and upgraded by our Tomsed trained technicians.

Looking for a solution to the one-way pedestrian traffic problem for your business? These turnstiles are the perfect answer. Place one at your entrance and even one at your exit to permit entry or exit only. There is even a place for a message placard for advertising or information.

Where there is need for electrical control, either from a card reader or remote switch, we can upgrade the mechanism for a Fail-lock entry.

Occupancy Capacity Control? We can even provide an incrementing/decrementing controller that once capacity is reached, the entry turnstile shuts down until people leave at the same or other exiting turnstile.

TOMSED/Boon

TUT-65RTB

Mechanical

$1775.00

Perey Model 47 Waist High Turnstile. A Classic Design

Restored Mechanism. Set for free entry and we can configure the exit direction to free exit or no exit on request.

Painted surfaces exhibit surface rust but with a little effort and paint, could be a gem.

Local pickup and local delivery (greater Raleigh, NC). This is too heavy, hence too expensive to ship.

PEREY

Model 47

SLIDING GATE PARTS - Burle, Philips, Tomsed, Boon Edam - AHSG, CHSG, SHSG, THG-51

Gate Drive Motor

Motor & Drive Shaft Coupling

Replacement Bearing for the Drive Shaft Travel Block

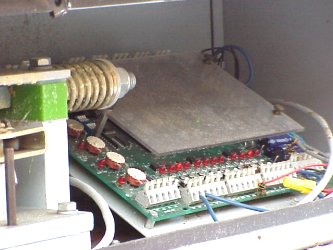

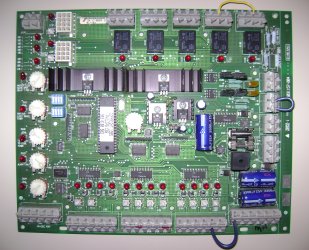

Replacement motor control relay for Philips and Tomsed slide gates (used in the board shown above)

Including models: AHSG, SHSG, CHSG & THG-51SG

C8166

$42.30

Schematic

9 Piece Roll Pin Punch Set with Roll-up Pouch. Perfect for removing spring roll pins from solenoid plungers, locking pawls, etc.

Sizes: 1/16, 5/64, 3/32, 1/8, 5/32, 3/16, 7/32, 1/4, 5/16

Using the wrong tool with spring roll pins will damage the pin and distort the hole it is set into.

The Tool of Choice for Setting Steel Roll Pins or Removing Cotter Pins. This 6" Long Nose Vise-Grip is such a versatile addition to your tool box that you'll find dozens of uses for it.

Not for Plastic Parts.

5 Piece Plier Set. The set includes 6-inch diagonal pliers, 6-inch long nose pliers, 7-inch linesman pliers, 6-inch slip joint pliers, and 8-inch groove joint pliers. All with comfort grips.

Old, chipped, worn and damaged tools are dangerous to you and can damage the equipment you work on. Go ahead and treat yourself to some new tools. We can't mention the brand name but the craftsman in you will appreciate these.

13 Piece Allen Hex Key Set - Fractional Sizes - Perfect for working on Hex Socket Head Bolts, Fasteners and Shoulder Bolts. Individual hex wrenches give you more maneuverability than the compact folding types. Comes with the storage case shown.

Sizes: 0.050, 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 3/16, 7/32, 1/4, 5/16, 3/8

7 Piece SAE Nut Driver Set:

Color Coded Comfortable Fluted Handles

3/16", 1/4", 5/16", 11/32", 3/8", 7/16", 1/2"

Old School Analog Multimeter. We love Analog Meters because you can see fluctuations, spiking voltages and intermittents that are impossible to capture on digital meters.

Selected for mid-scale reading of most common turnstile voltages.

Not for use in wet or hazardous areas.

For those that like the ease and convenience of a Digital Multimeter. Perfect for all your troubleshooting needs.

You don't need to bring your expensive multimeter into the field. This is not laboratory work, just basic troubleshooting.

Not for use in wet or hazardous areas.

"HOT STUFF"

Variable 150°C to 450°C Temperature Soldering Station. 5-40 Watts.

Cushioned rubber grip, Replaceable tips, Tip cleaning sponge, Bakelite ringed holder, 1.5 mm conical tip.

919-412-9200

There's a fine line between tool and stool

Often pronounced the same but very different

Be careful what you ask for from our Competitors

For Tomsed/Boon Edam Waist High Turnstiles

New/old stock solenoids with slightly discolored metal surfaces

Operationally Perfect.

Replacement Coil Only - No Plunger, No Bracket Kit

Use your existing plunger and bracket.

3 Pieces Left

For THT-100 Tomsed/Boon Edam Full Height Turnstile

New but old stock solenoids with discolored metal surfaces mated with previously used mounting brackets.

Operationally Perfect.

Meet Lillie

Our Spokescat, Lillie, was born in 2006 in Lillington (hence her name), North Carolina and patrolled the factory floor at Tomsed Corp. She was always welcomed around the lunch table and ate the offerings that were given to her. She also kept the place clear of mice. One day the new owners determined that she was a distraction and a nuisance. The Maintenance group was tasked with obtaining a raccoon trap and bringing her to the county (kill) shelter. Lillie was scooped up and saved and brought to Fuquay-Varina where she still lives and has a number of Brother and Sister kitties. She is currently the head of Quality Catroll here at XIS. Nothing leaves our facility without her Meow of Approval.
